MRCC Hi-Line Flat Skid for Axial SCX10.3 Coyote

A cleaner underside.
9mm more belly clearance.
Built for a lower, more capable SCX10.3 Coyote.

The Axial Coyote is a surprisingly capable truck right out of the box.
This skid is for the guys who want to take it even further.

The MRCC Hi-Line Flat Skid for the Axial SCX10.3 Coyote was designed to clean up the underside, lower weight where it matters, and open the door to better transmission options without turning the truck into a one-off mess.

This is not just a replacement skid.
It is a better foundation for the chassis.

Why Hi-Line?

• Adds 9mm of belly clearance
• Cleans up the underside of the chassis
• Reuses the stock Axial links
• Opens the door to better transmission options
• Uses metal threaded inserts throughout
• Built for a cleaner, lower, more performance-focused setup

Available Transmission Options

The Hi-Line Flat Skid is available for:

• Blank Skid for custom options
• Stock Axial LCXU
• DLux Portal
• DLux OD3
• DLux NOD2
• Reefs XPT3

Performance Benefits

Depending on transmission setup, benefits include:

• 9mm more belly clearance

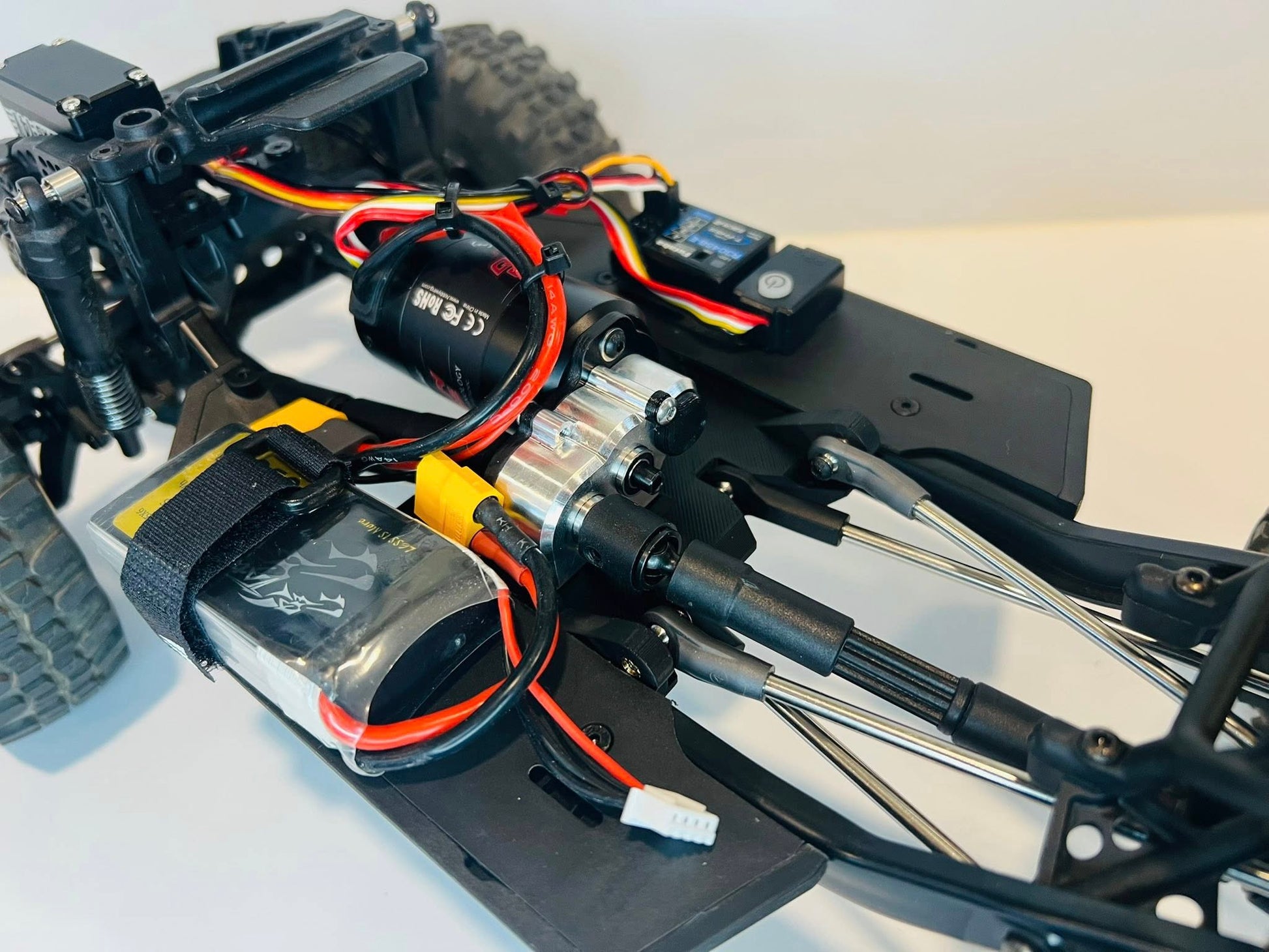

• Motor lowered 10mm with the DLux Portal
• Motor moved forward 46mm with the DLux Portal
• 4.05 oz less sprung weight with the DLux Portal swap
• 5.4 oz reduction when removing the battery tray and moving the battery lower onto the slider

Flatter Bottom. Better Performance.

The Hi-Line Flat Skid was designed to create a cleaner, more capable chassis layout for the SCX10.3 Coyote.

That means a smoother underside, less weight up high, and better use of space where it matters.

Less bulk.
Less weight.
More clearance.
A cleaner foundation for the truck.

Link Compatibility

The Hi-Line Flat Skid reuses the stock Axial links, but the lower links require RPM long rod ends (#80512) or Traxxas 5525 rod ends for proper fitment.

Built to Last

Like the rest of the Hi-Line lineup, this skid was designed with durability and serviceability in mind.

Metal threaded inserts are used throughout for stronger threads, better long-term durability, and improved serviceability.

No threads cut directly into plastic.
No compromise where it matters.

Designed to Fit. Built to Last.

The MRCC Hi-Line Flat Skid for Axial SCX10.3 Coyote gives the truck a cleaner underside, more belly clearance, lower weight where it matters, and a more performance-focused drivetrain foundation.
